2D
Create a 2D view of your 3D model! All items in the 2D are also selectable and can be filtered in the property view. You can also clip into the 2D with the sliding bar
2D background color
Chose your own custom background color in 2D mode.
2D and 3D combined
Combine 2D (such as floor plans and more) together with your 3D data.
Use your 2D data from files such as DWG to do measurements with 100% accuracy!
360 photos
See your 360 panorama images directly together with the 3D

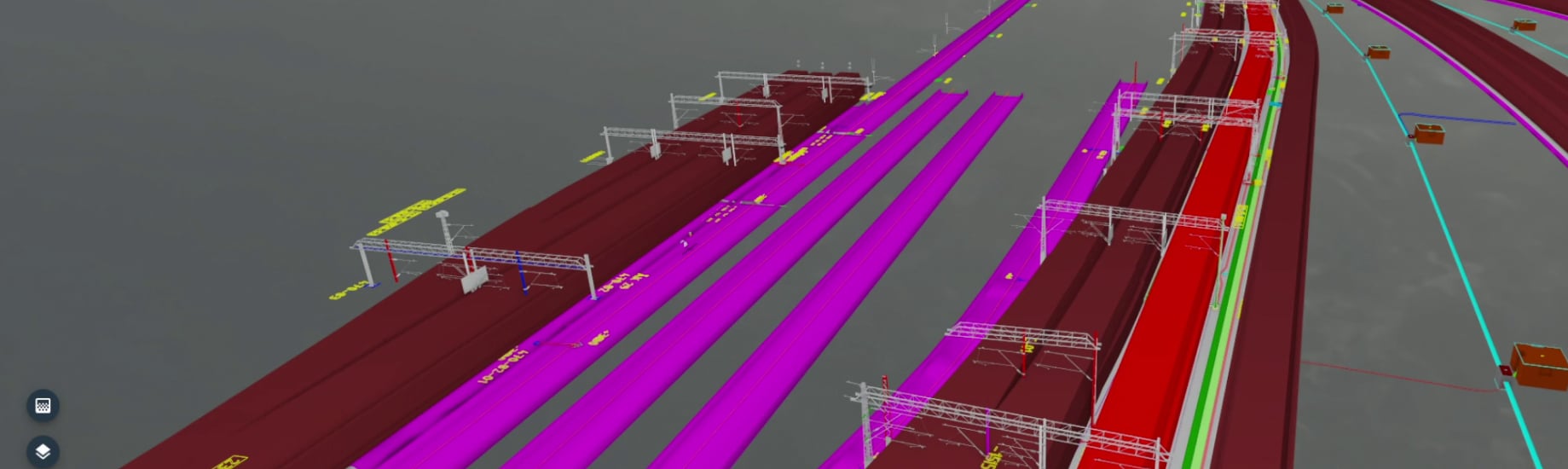

All functionality
See a full length video with an overview of all the functions
Area Measurement
Measure an area to get the exact m2
Background image
Chose between various amounts of images as a background for your 3D models. There are backgrounds such as ocean, hills, clouds and many more.
Bookmarks
Bookmarks allows the user to jump to predefined areas in the model. These predefined areas may also contain measurement, clippings, groups and more.
It will also change the properties view, by showing the items that are selected in the current bookmark.
BIM Collab – BCF
For every issue, all comments and resolutions are automatically retrieved from BIMCollab. You can also create/resolve/close issues and comments back to the BIMCollab platform. This creates a powerful visualization tool, where you can combine all your issues and comments together with the contextualizes 3D data. The two-way sync makes it possible to perform a thorough evaluation of decisions when needed.
For every issue, all comments and resolutions are automatically retrieved from BIMCollab. You can also create/resolve/close issues and comments back to the BIMCollab platform. This creates a powerful visualization tool, where you can combine all your issues and comments together with the contextualizes 3D data. The two-way sync makes it possible to perform a thorough evaluation of decisions when needed.
BIM Track – BCF
Streamline the BIM communication, collaboration, and coordination processes with BIM Track in Novorender. Collect all comments and issues from BIM Track, and view them directly in Novorender for the whole team to get access. For every issue, all comments and resolutions are automatically retrieved from BIM Track. You can also create/resolve/close issues and comments back to the BIM Track platform. This creates a powerful visualization tool, where you can combine all your issues and comments together with the contextualizes 3D data. The two-way sync makes it possible to perform a thorough evaluation of decisions when needed. Get an overview at any time, from anywhere, even from your phone. Stop exchanging files with outdated lists and work seamlessly together from a single source of truth.
Checklist
Create checklists for all items in the 3D. You can even assign them to one or multiple attributes!
Clipping Box
Use clipping to see section planes
Clipping plane
Create different section views of your 3D model! Select any surface, and clip into the model with the “Position” sliding bar
Ditio
Get a complete overview of every lifecycle of the project, directly inside the 3D model. Get an overview of all images, comments, issues and more.
dRofus
Functions button
The button is at the bottom right
Open functions
Click the functions button to open up all features
Geometric control
Compare your as-built against the underlying 3D models. In the video example we display the geometric control with over- and underbreak, to validate the drilling and explosives work for tunnel work. Large point clouds are used to be compared against IFC/landXML files to validate the ongoing work.
Choose your landXML file in the widget “Follow Path” to get started
Groups
Create groups to allow the users in Viewer mode to automatically select predefined areas, based on searches, in the model.
Groups exclude
Use Groups to only show parts of the model, and exclude everything else.
Height Profile and slope
Get the height profile and slope of a pipe, tubes and others. Click and get the break points between different slopes.
IFS
Go from IFS to Novorender or the other way around. Based on attribute ID, you can find documents andre more.
Images
Visualize all of your pictures ranging from Drone scans to phone images.
All of them geo-positioned together with the 3D data.
Jira
Use Jira for issue tracking with a two-way sync
Manhole
Create custom measurements for manhole covers. It will give you various measurements such as Elevation for top and bottom, radius for inner and outer, elevation, x, y,z and much more!
Manhole to pipe
Get the exact measurements from a manhole to a pipe
Measurement
Measure allows for detailed measuring show distances, differences, elevations and more.
When the data is parametric, it is also possible to get additional information such as slope, width, height, area and more.
Measurement 2D
Use your 2D data from files such as DWG to do measurements with 100% accuracy!
Measurement Center Line
Use Center lines to measure the closest distance to any point in the model.
Remember to pin the center line in the measurement tool before selecting another point.
Measurement – Inner bottom, Outer Top
Click on any pipe to get automatic measurements showing slope, slope direction and more. In addtition, you are now able to see inner bottom and outer top measurements.
Measurement Parametric
When the data is parametric, it is possible to get additional information such as slope, width, height, area and more.
Measurement snap
Use the advanced measuring tool of Novorender to snap to corners, measure between objects or entire surfaces and much more. At Novorender we measure using the brep data, so the measurements are always 100% correct!
Microsoft Teams
Use your Novorender models inside Microsoft Teams, with all of the same functionality available!
Movement modifiers
The buttons are in the bottom center
Speed control
The speed button has three modes “normal,” “fast,” and “slow.” Each mode alters the movement/ camera speed.
Step back
Step back button steps the user back to the previous camera view.
Step forward
Step forward button steps the user forward to the previous camera view.
Home
The home button takes the user back to the initial camera view.
Fullscreen
The fullscreen button makes the 3D fullscreen
Keyboard
Use the buttons on your keyboard to navigate in the 3D.
W = Move forward
S = Move backwards
A = Move Left
D = Move Right
E = Fly up
Q = Fly down
Shift = Speed up
Arrow down = Look Up
Arrow up = Look Down
Left arrow = Look left
Right Arrow = Look right
Mouse
Changing direction
Hold down the left mouse button and drag the mouse.
Moving the camera
The easiest way to move is to scroll, and you fly to the mouse courser
Some users prefer WASD+QE to fly.
Rotate around object
Hold right-click mouse button to rotate around an object (360 view). Remember that the area where you point the cursor will be the center of the rotation.
Up, down, right and left
Hold scroll mouse button to move up, down, right and left
Selection
To select an object left click.
Phones and tablets
Changing direction
Hold one finger on the screen and drag the finger.
Moving the camera
Pinch in or out to move in the direction you wish to fly. The camera will fly towards where you are pinching on the screen.
Rotate around object
Hold three fingers on the screen to rotate around an object (360 view)
Selection
Tap an object to select it.
Model Tree
Select model tree to see the hierarchy of the 3D model from the input data. Users can either dig down or select an object and see where the item lays in the hierarchy.
My location
Find out where you are in the 3D based on your real-world location. You can chose whether you want to see a marker pin or not.
Novatron – Xsite Manage
Automatically import your log points from xsite manage. Filter by vehicle and code.
Omega 365
Retrieve documents and information from Omega, simply by clicking individual elements in the 3D model. You can also jump from Novorender to Omega 365, based on the item that has been clicked.
Orthophoto
Combine Orthophoto with 3D, lines and more
PDF
Use PDF as an underlay (floor plan, zoning plan++) together with your 3D and other 2D files.
Point Line
The Novorender measurement tool is updated with showing angles and length(s) on top of the 3D. It will also show you segment lengths, Angles between segments and points (x, y and z). You are also able to lock elevation.
Position
Find your position in the 3D according to your position in the real world
Properties
The property button displays all metadata/attributes of every element.
It can be used to view all of same type. See in the GIF below how all windows are selected.
Property Tree
Use the property tree to list all the properties in the 3D.
Search
Use the search function to search for elements. You can search for any string, and it will return all objects that have part of this string as either name or in its metadata. For example: if you search for “column”, it will return all items with the column attribute.
By selecting “Advanced” it allows you to search for a specific property value.
If you select the = button it will return exact matches.
Advanced Search
Use the Advanced search function to search for multiple elements.
You can do “AND”, “NOT” “OR” and many more searches.
Search Range
Use the Range Search widget to search for date ranges based on attribute.
Selection basket
When using the selection basket you can choose which items you want to display without selection color. When pressing “Add”, the item will be selected and displayed with the original color
Selection Basket csv export
Select any items and export their attributes into csv.
When looking at the csv, remember to import the data in Excel through “Data -> From Text/CSV”
Selection modifiers
The buttons are at the bottom left
Clear
Clears/unselects the current selected object(s).
Hide / unhide
Hides/disables the current selected objects(s).
When “Hide” is clicked, the button turns to “unhide.” Enabling you to unhide/enable the hidden objects.
Single / multi-select
When the button displays as “single”, Single selection mode is enabled, enabling you to select one object.
When “multi” is enabled, the user can select multiple items.
All objects / selection only
The “all object” button indicates if all objects should be shown or only selected items.
Color picker
Chose the default color for selected items
The “share link” creates a URL that can be shared or stored.
The URL contains all the information about the current view state. Like selected objects, camera position, clipping plane, etc.
Think of this as taking a screenshot, but the receiver can move around from your exact position and view state.
Windows
- Enter “Graphic Settings” on your computer
- Enable “Hardware Accelerated GPU Scheduling”
- Under the “Choose an app to set preference” (in the second red circle), select the browsers and applications that you are using with Novorender, and set them to “High Performance”
